UAV 2 Channel (2G), UMTS (3G), LTE (4G) IMSI Catcher

Revector Detector IMSI Catcher is a proprietary patent pending Military Standard 2G, 3G, 4G native SIM enabled device detection, identification tracking and manipulation system.

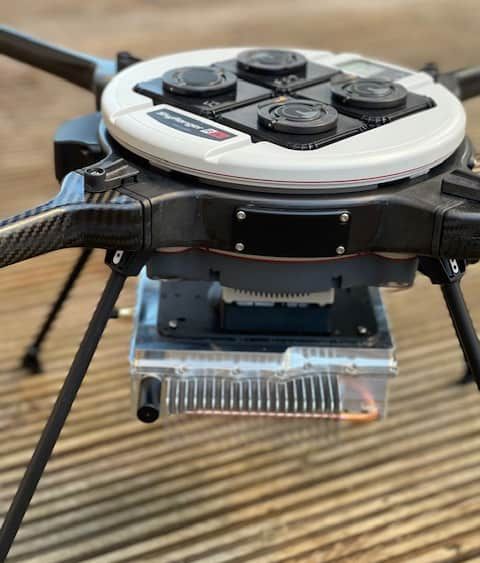

Revectors' active payload module is designed for use across multiple unmanned aerial vehicles (UAV). The product has been designed for lightness, robustness and reliability to work in extreme environments. Each system contains a Dual

Radio SDR that can be run simultaneously, all with network capability extracting mobile subscriber identities (IMSI) and taking control.

Revector Detector establishes a new mobile phone cell site, encouraging any GSM, UMTS, LTE device in range to
connect to Revector Detector cell. Once connected the Revector Detector operator can execute many different features
on the target. For example, Revector Detector, can force targeted 4G devices down to specific 3G cells and down to
specific 2G cells, extract GPS location, block specific targets, drain target battery, direction find via silent call, all native
on 2G, 3G, and 4G with many more features.
UAV 2 Channel Payload Main Features
Tactical mapping for immediate location
Active route mapping
Redirect target device to GSM/UTMS/LTE
Each channel offers 5W at 2G, nominal 1W 3G/4G
Record all IMSI, IMEI and TMSI information
Spoof inbound SMS or call to captured target phone
Monitor outbound SMS or call attempts
Alert on predefined suspect IMSI or IMEI
GPS location and time date stamp for all data
Silent Call / Direction Finding on all technologies
Selective jamming (denial of service) target devices
Central Control management via UAV uplink
Distance information on target UE
Emergency call override
Voice channel to target device

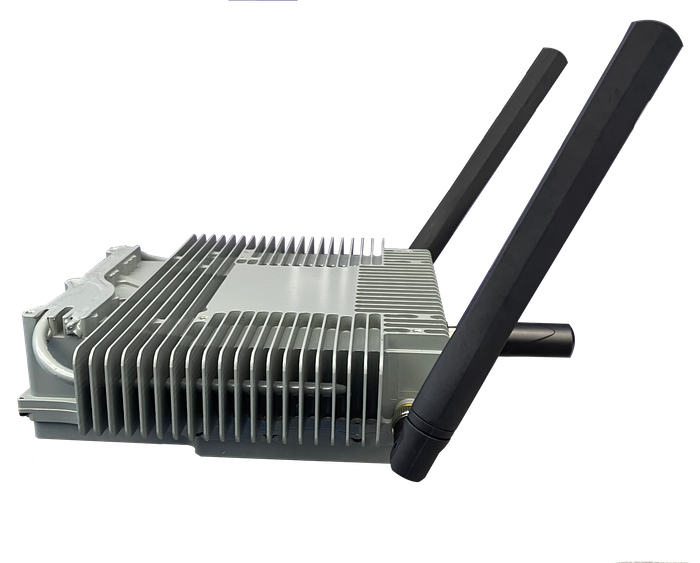

UAV Payload Specification - Dual Radio
Size: 200 x 195 x 53mm.
Weight 1.2Kg
RF output power – Up to 3 Watts per channel- 2G – 3W,
3G – 1W, 4G 0.75W
Dual radio, flexible use, any mix of worldwide bands,
Receiver Sensitivity <-120dBm
Customised antenna array for each UAV
400Mhz-3Ghz SDR radios
GPS Tracking
Operating 0°C to 55°C, 12V DC, <40 Watts
Power supply – UAV or standalone
Optional full TAC database, with over 200,000 (IMEI
