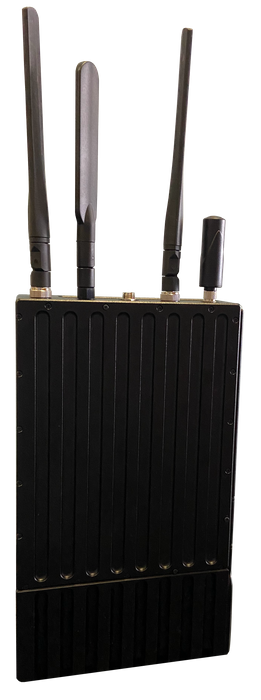

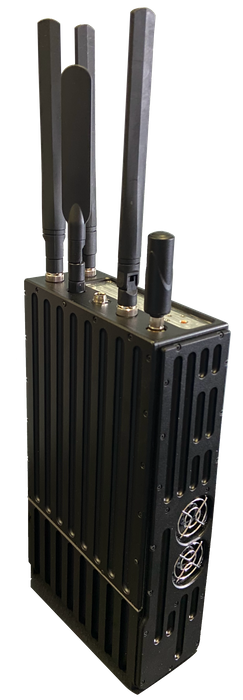

Covert IMSI Catcher
Portable 2 Channel (2G), UMTS (3G), LTE (4G) Lightweight IMSI Catcher
Revector Detector IMSI Catcher is a proprietary patent-pending Military Standard 2G, 3G, 4G native SIM-enabled device detection, identification tracking, and manipulation system.

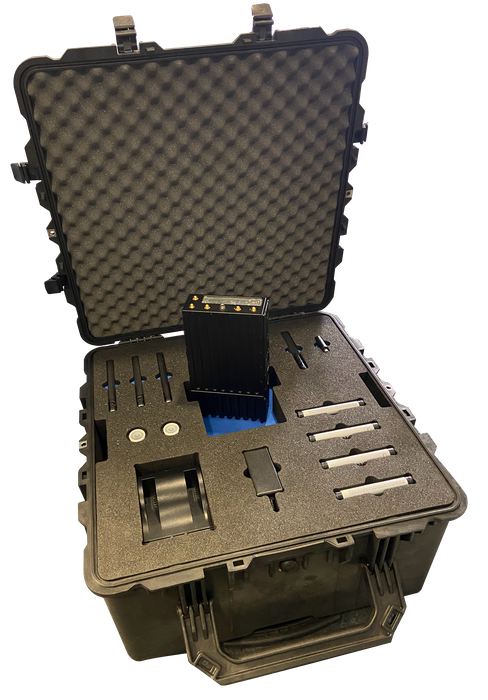

Revectors' active covert module is designed for use in on-the-ground tactical operations. The product has been designed for lightness, robustness, and reliability, proven to work in extreme environments. Each system contains a dual radio SDR that can be run simultaneously, all with network capability, effortlessly extracting mobile subscriber identities (IMSI) and taking control. Small and versatile to fit in a small backpack, carry case, holdall, or motorcycle helmet box for easy concealment.
Revector Detector establishes a new mobile phone cell site, encouraging any GSM, UMTS, LTE device in range to
connect to Revector Detector cell. Once connected the Revector Detector operator can execute many different features
on the target. For example, Revector Detector, can force targeted 4G devices down to specific 3G cells and down to
specific 2G cells, extract GPS location, block specific targets, drain target baÎery, direction find via silent call, all native
on 2G, 3G, and 4G with many more features.
2 Channel Covert Main Features
Tactical mapping for immediate location
Active route mapping
Redirect target device to GSM/UTMS/LTE
Each channel offers 5W at 2G, nominal 1W 3G/4G
Record all IMSI, IMEI, and TMSI information
Spoof inbound SMS or call to captured target phone
Monitor outbound SMS or call attempts
Alert on predefined suspect IMSI or IMEI
GPS location and time date stamp for all data
Silent Call / Direction Finding on all technologies
Selective jamming (denial of service) target devices
Central Control management via UAV uplink
Distance information on target UE
Emergency call override
Voice channel to target device
Covert Specification - Dual Radio
RF output power – Up to 3 WaÎs per channel- 2G – 3W,
3G – 1W, 4G 0.75W
Dual radio, flexible use, any mix of
worldwide bands,
Receiver SensiĘvity <-120dBm
Customisable antenna array
400Mhz-3Ghz SDR radios
Operating 0°C-55°C, 12V DC, <40 Watts
Intelligent hot swap baÎeries
Upto 3 hours operational time
Size: 298 x 166 x 70mm.
Weight 3.3Kg
